Senses and Adapts to Environment Impinj Autopilot technology automatically optimizes the reader's operation for its environment
Flexible, Design-Specific Solutions Handles high tra c volumes, RF-challenging environments and a wide variety of RAIN RFID-tagged products
Platform Ready Leverage Impinj ItemSense software for large-scale data aggregation and device management
Inventory Management Ensure supplies are always in stock, get accurate information about the availability and consumption of materials, and manage inventory with lower cost through
Asset TrackingEasily track returnable, reusable assets for reduced errors and increased effcient utilization and expiration management
AuthenticationTrack and authenticate items through the supply chain
Impinj readers deliver item visibility with the performance, quality, and reliability necessary for robust solutions. Impinj Speedway readers have accessories that support custom solution development. Our handheld readers provide high performance coupled with full-featured mobile computing and intuitive operation.
|
Product Details |

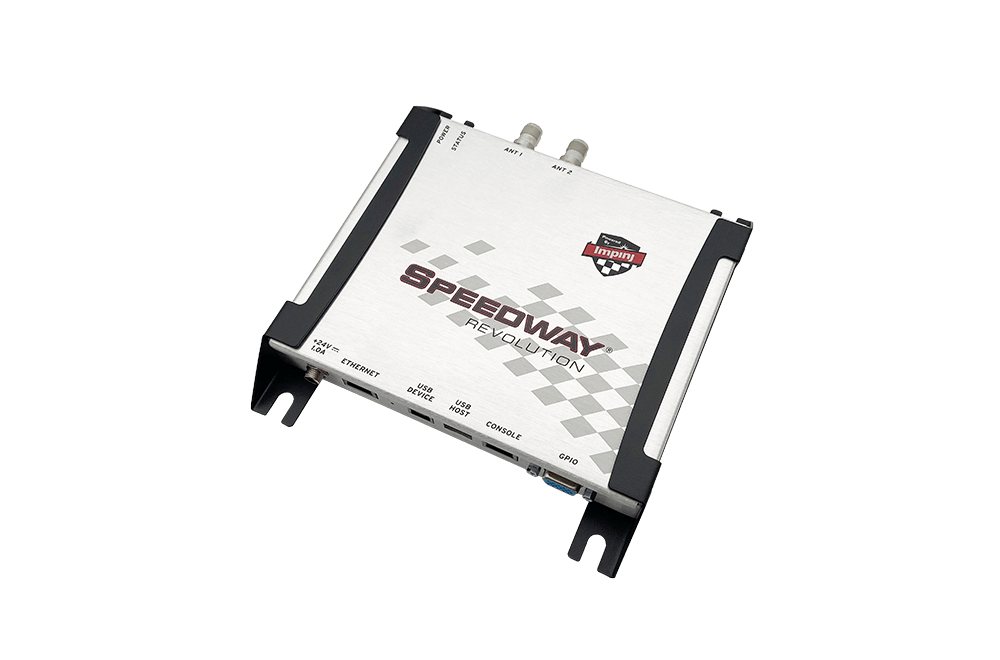

Speedway R420 |
Speedway R220 |
Speedway R120 |
|
Use Cases |
Optimized for 4 read zone use |
Optimized for 2 read zone use |
Optimized for 1 read zone use |
|
Antenna Ports |
4 |
2 |
1 (enabled) |
|
Read Zones (maximum) |
32 with Antenna Hubs |
2 |
8 with Port Pack |
|
Transmit Power (maximum without |
FCC: 32.5 dBm AC/ 31.5 dBm PoE |
FCC: 32.5 dBm AC/ 31.5 dBm PoE |
FCC: 30.0 dBm AC and PoE |
|
Air Interface Protocol |
GS1/EPCglobal UHF Gen2 (ISO 18000-63) or RAIN RFID |
||
|
Receive Sensitivity (maximum) |
- 84dBm |
||
|
Return Loss (minimum) |
10dB |
||
|
Reliability |
Enterprise Grade |
||
|
Network Connectivity |
10/100BASE-T Ethernet |
||
|
GPIO Support |
Yes |
||
|
USB Ports |
1 device (Type B), 1 host (Type A) |
||
|
Management Console Port |
RS-232 using a standard Cisco-style management cable (DB-9 to RJ-45) |
||
|
Power Sources |
802.3af PoE or AC-DC power supply rated for 24Vdc/2.1A |
||
|
Environmental Sealing |
IEC IP52 |
||
|
Shock and Vibration |
MIL-STD-810G |
||
|
Operating Temperature |
-4°F to 122°F (-20°C to 50°C) |
||
|
Humidity |
5% to 95% non-condensing |
||
|
Dimensions (H x W x D) |
7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm) |
||
|
Weight |
1.5 lb (.7 kg) |
||
|
RF Certifications |
www.impinj.com/supported_regions |
||
|
RoHS Compliant |
Yes |
||
|
Speedway SDK, ETK and LTK library support |
Yes |
||
|
Warranty and Maintenance Options |
1 year limited warranty with purchase, option to extend 3 year Enhanced Maintenance upgrade available |
||
