TG-072-1（Dry Inlay）

8619952766545

Sales@thinkgo.cc

TG-072-1（Dry Inlay）

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

PARAMETER

Product Name	Dry Inlay	Part Number	TG-072-1
Label Size	55mm×35mm	Chip Type	ImpinJ / M4QT

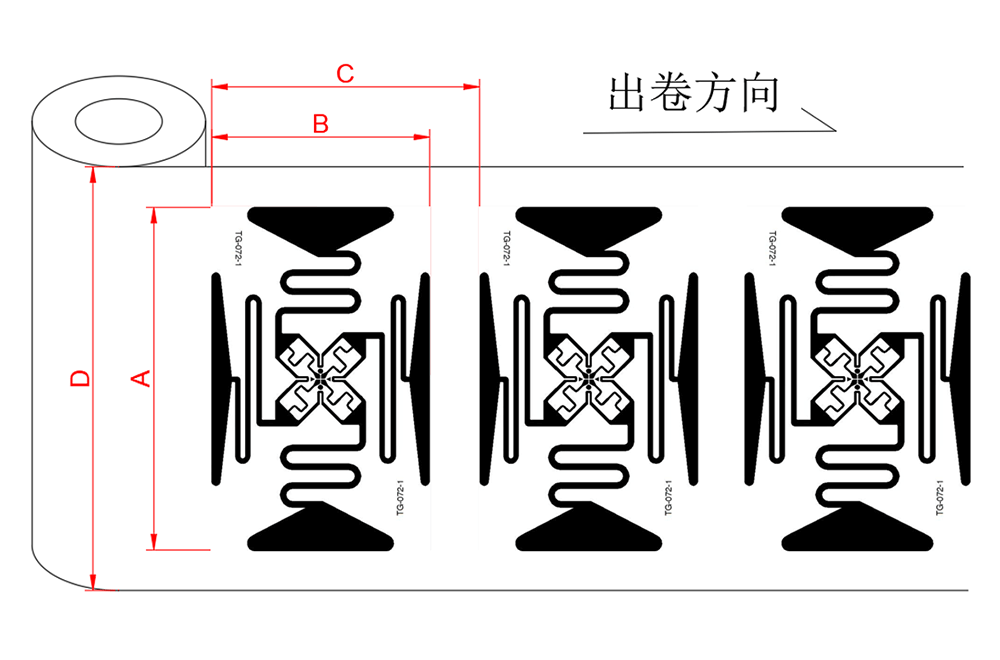

Dimensions
Structural Representation

A×B	Antenna Size		55 mm×35 mm		±0.20mm
C	Label hop distance		42.984 mm		±0.50mm
D	PET Width		68 mm		±0.50mm
Electrical Characteristics
Item		Description
Chip Type		Impinj / Monza 4QT
Production Standard		EPC global ISO 18000-63 Gen2V2
Chip Memory Section		EPC		128 bits
		User Memory		512 bits
Carrier Frequency		860～960MHz
Work Mode		Passive
Chip lifetime		Write100,000 times，Reserve data for 50years
ESD		Maximum 2000V HBM(Human Body Model)
Operation Requirements		Operating Temperature/Humidity：－5～60℃/ 20%～80% RH
		Storage Temperature/Humidity：20～30℃/ 20%～60% RH
		Prohibit violent impact, prohibit extrusion or bending chip parts
Packing		8000±100pcs/roll，2rolls/box
