TG-074-1（Dry Inlay）

8619952766545

Sales@thinkgo.cc

TG-074-1（Dry Inlay）

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

PARAMETER

Product Name	Dry Inlay	Part Number	TG-074-1
Label Size	40mm×14mm	Chip Type	Impinj/Monza 4E

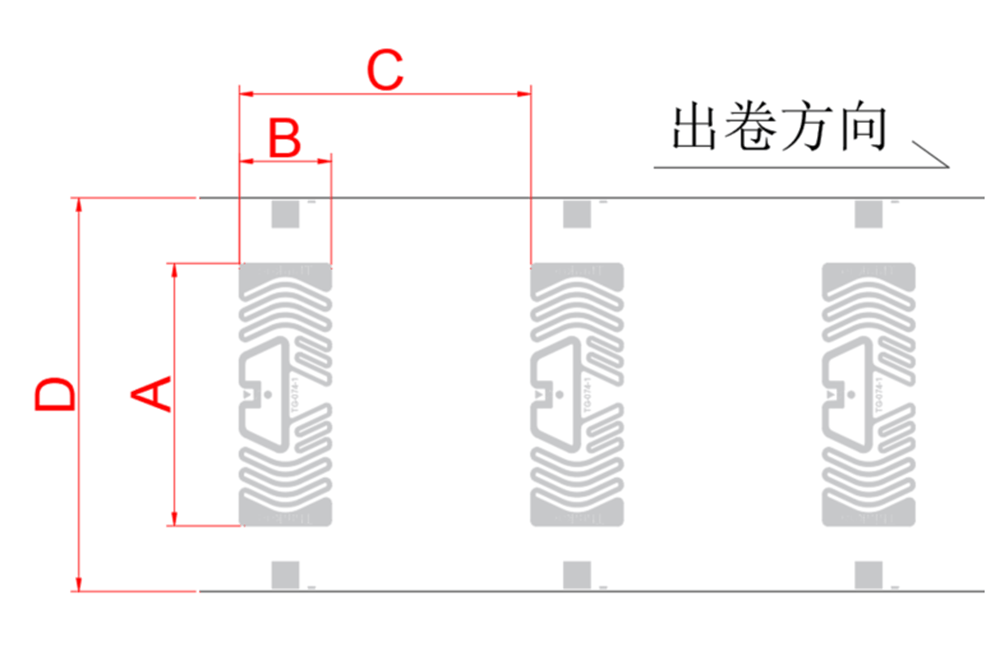

Dimensions

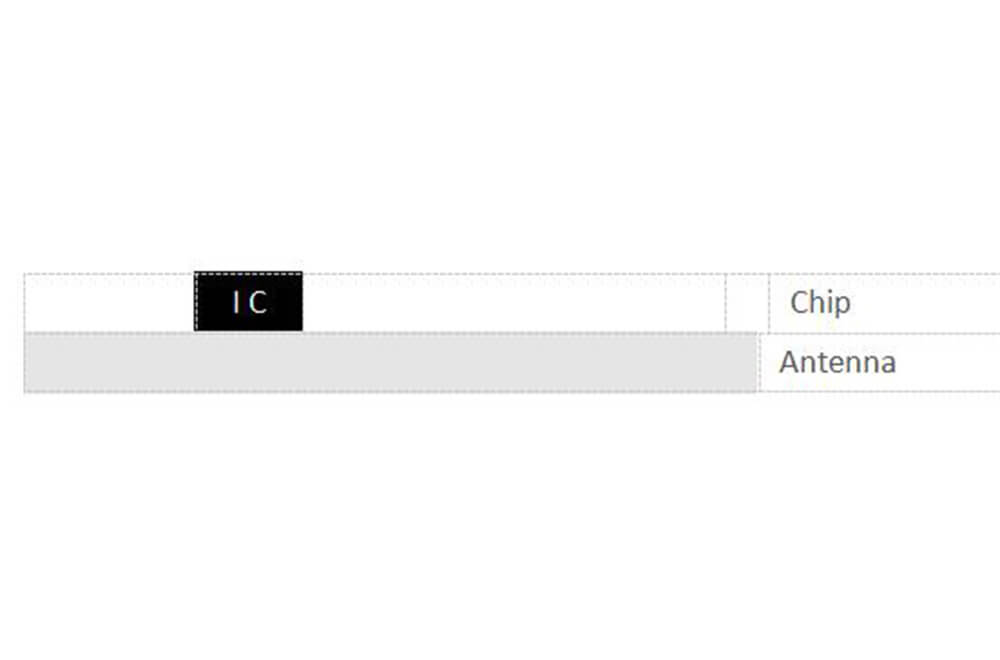

Structural Representation

A×B	Antenna Size		40 mm×14 mm		±0.20mm
C	Label Hop Distance		44.45 mm		±0.50mm
D	PET Width		60 mm		±0.50mm
Electrical Characteristics
Item		Description
Chip Type		Impinj/Monza 4E
Production Standard		ISO 18000-6C
Chip Memory Section		EPC		496 bits
		User Memory		128 bits
		TID/Unique TID		96 bits
		Password(Access/ Kill)		64 bits
Carrier Frequency		860～960MHz
Work Mode		Passive
Chip lifetime		Write100,000 times，Reserve data for 50years
ESD		Maximum 2000V HBM(Human Body Model)
Operation Requirements		Operating Temperature/Humidity：－5～60℃/ 20%～80% RH
		Storage Temperature/Humidity：20～30℃/ 20%～60% RH
		Prohibit violent impact, prohibit extrusion or bending chip parts
Packing		5000±100pcs/roll，4 rolls/box v
