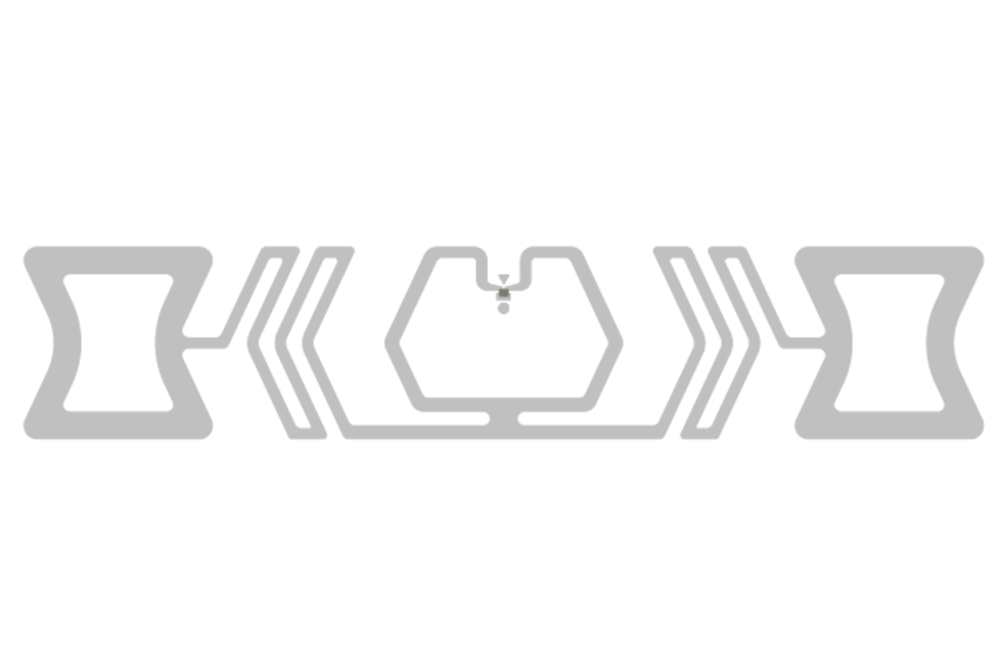

Product Name |
Dry Inlay |
Part Number |
TG-078-1 |
|
Label Size |
70mm×14mm |
Chip Type |
NXP Ucode G2iM |
-

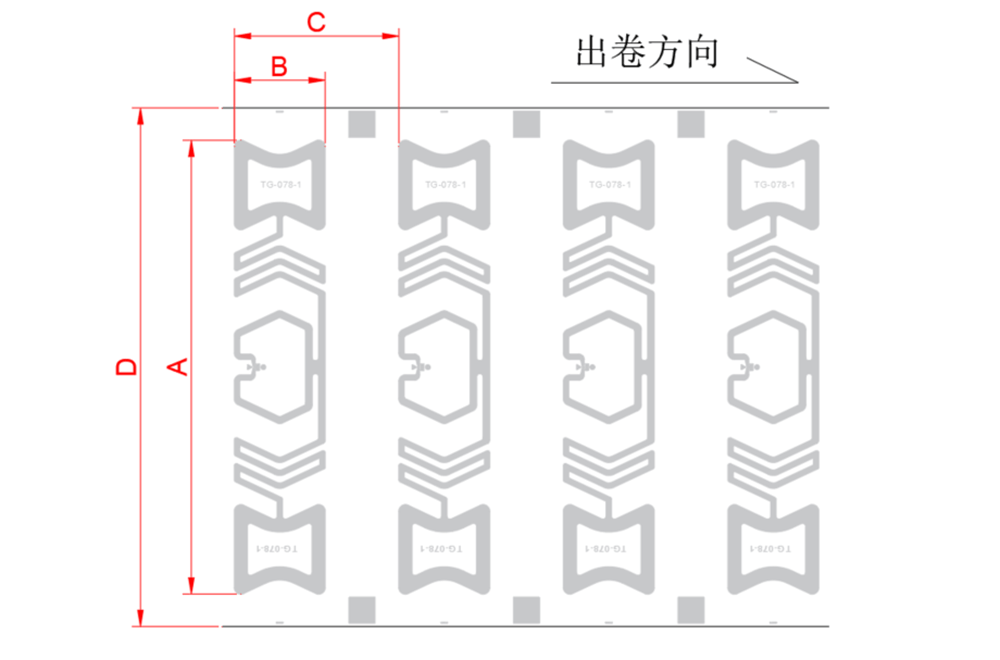

Dimensions
-

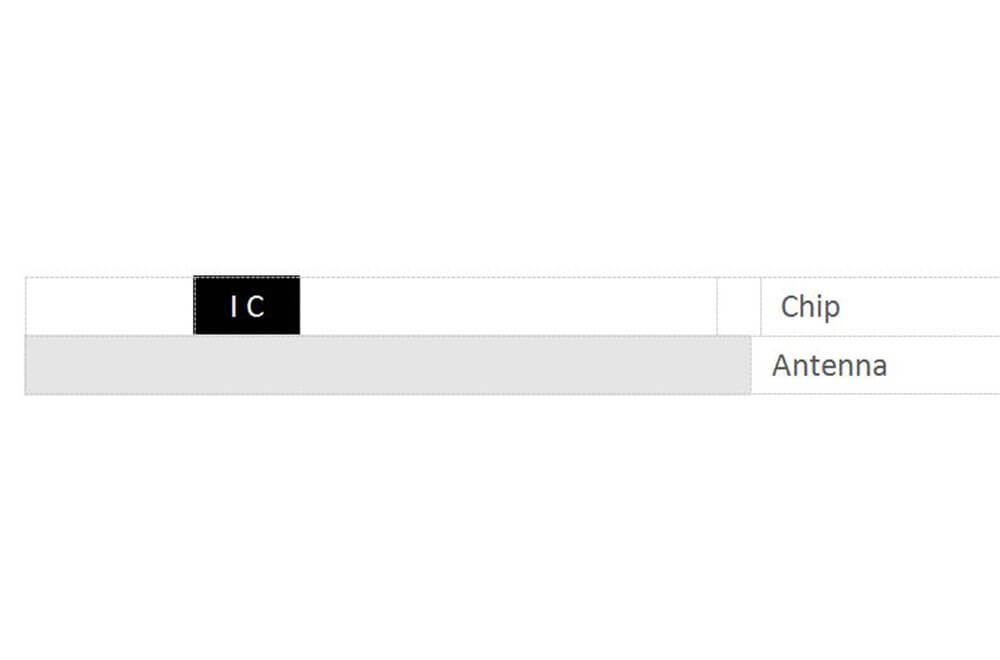

Structural Representation
|
A×B |
Antenna Size |
70 mm×14 mm |
±0.20mm |
||
|
C |
Label Hop Distance |
25.4 mm |
±0.50mm |
||
|
D |
PET Width |
80 mm |
±0.50mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
NXP Ucode G2iM |
||||
|
Production Standard |
ISO 18000-6C |
||||
|
Chip Memory Section |
EPC |
256 bits |
|||
|
User Memory |
512 bits |
||||
|
Config-Word |
16 bits |
||||
|
Mem-Config-Word |
16 bits |
||||
|
TID |
96 bits |
||||
|
Kill Password |
32 bits |
||||
|
Access Password |
32 bits |
||||
|
Carrier Frequency |
860～960MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
10000±100pcs/roll，4 rolls/box |
||||
