Product Name |
Dry Inlay |
Part Number |
TG-079-1 |
|
Label Size |
32mm×8mm |
Chip Type |
ImpinJ / Monza R6-P |
-

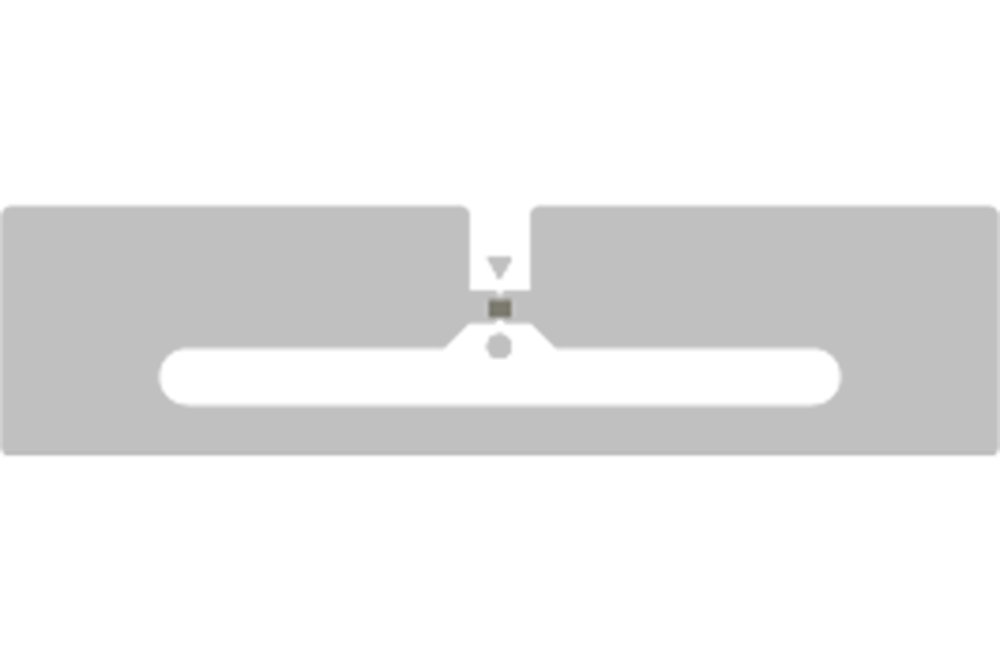

Dimensions
-

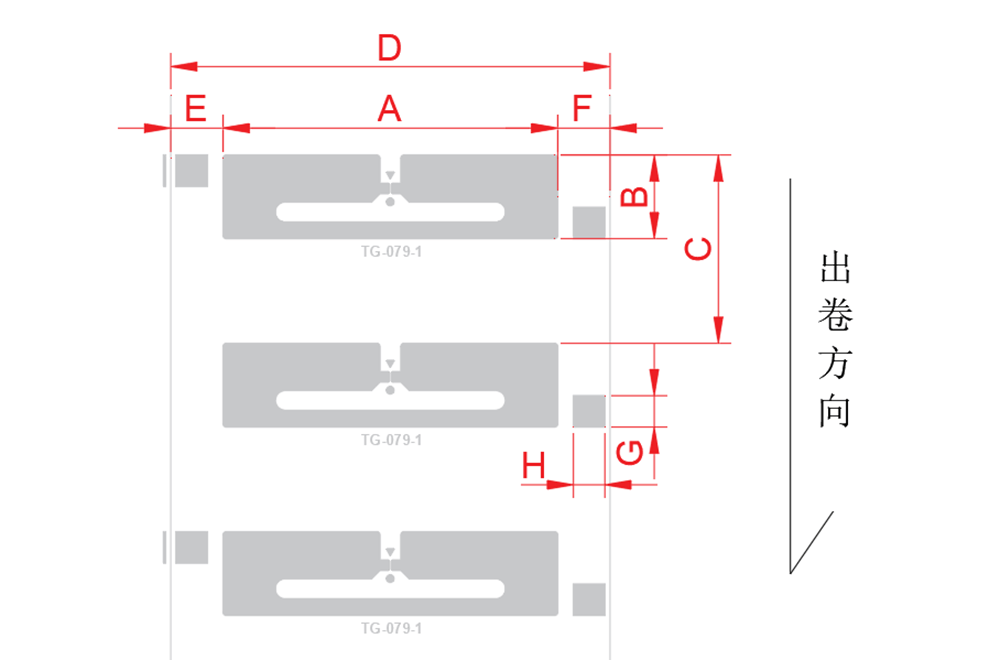

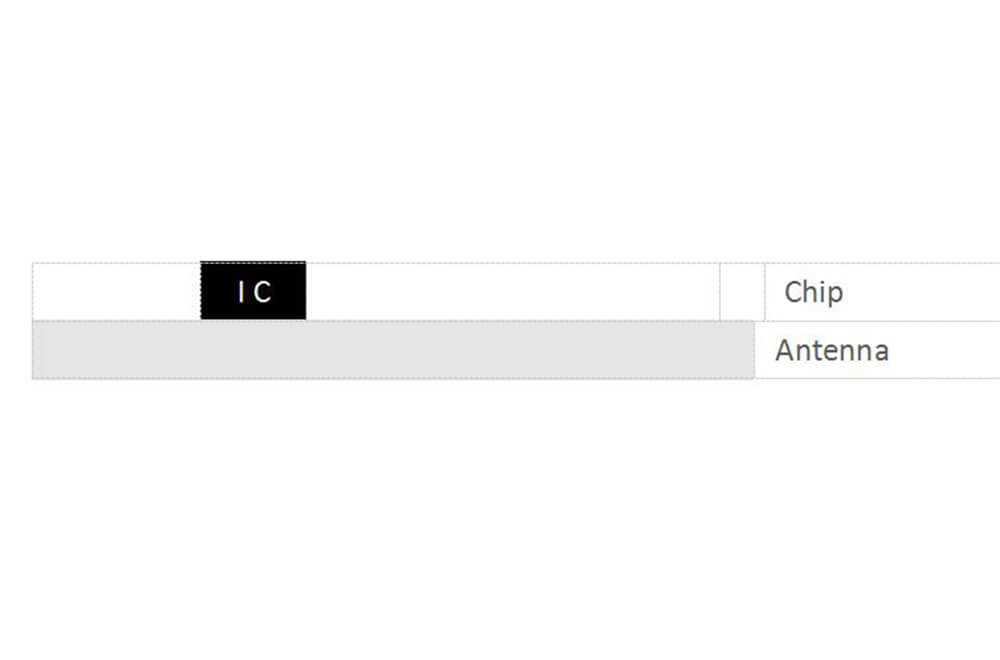

Structural Representation
|
A×B |
Antenna Size |
32 mm×8 mm |
±0.20mm |
||
|
C |
Label Hop Distance |
18 mm |
±0.50mm |
||
|
D |
PET Width |
42 mm |
±0.50mm |
||
|
E |
Left margin of Label and PET |
5 mm |
±0.50mm |
||
|
F |
Right margin of Label and PET |
5 mm |
±0.50mm |
||
|
G×H |
Black MARK Size |
3 mm×3 mm |
±0.20mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
ImpinJ / Monza R6-P |
||||
|
Production Standard |
ISO 18000-6C |
||||
|
Chip Memory Section |
EPC |
128 bits |
|||
|
User Memory |
32 bits |
||||
|
Serial Number |
|||||
|
Extended TID Header |
16 bits |
||||
|
Company/Model Number |
32 bits |
||||
|
Kill Password |
32 bits |
||||
|
Access Password |
32 bits |
||||
|
Carrier Frequency |
860～960MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
10000±100pcs/roll，2 rolls/box |
||||
