Product Name |
U Label |
Part Number |
TG-095-1 |
|
Label Size |
37mm×30mm |
Chip Type |
ImpinJ / Monza R6-P |
-

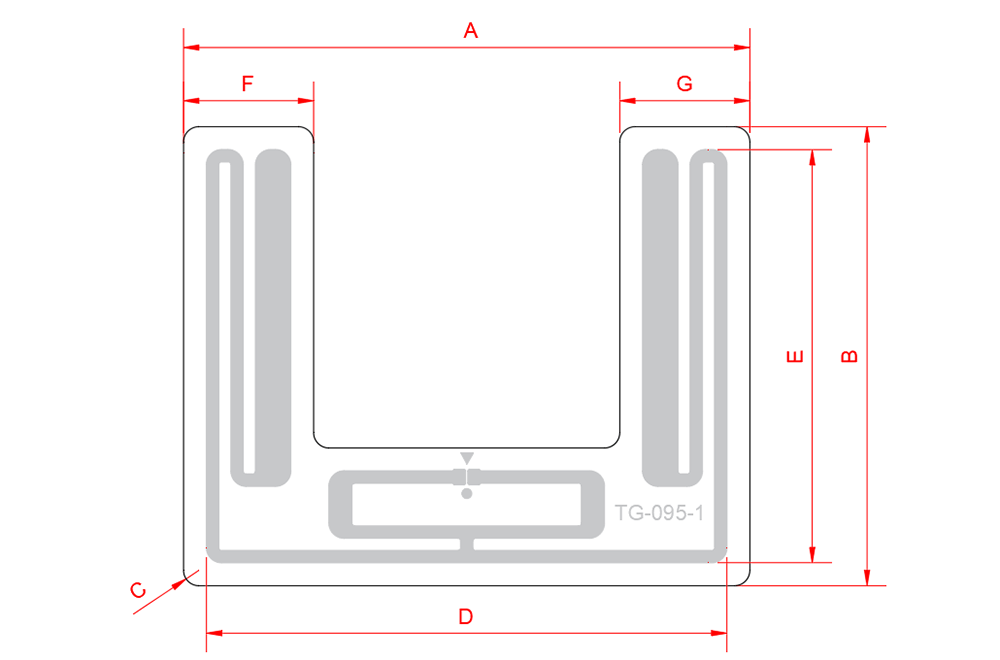

Dimensions
-

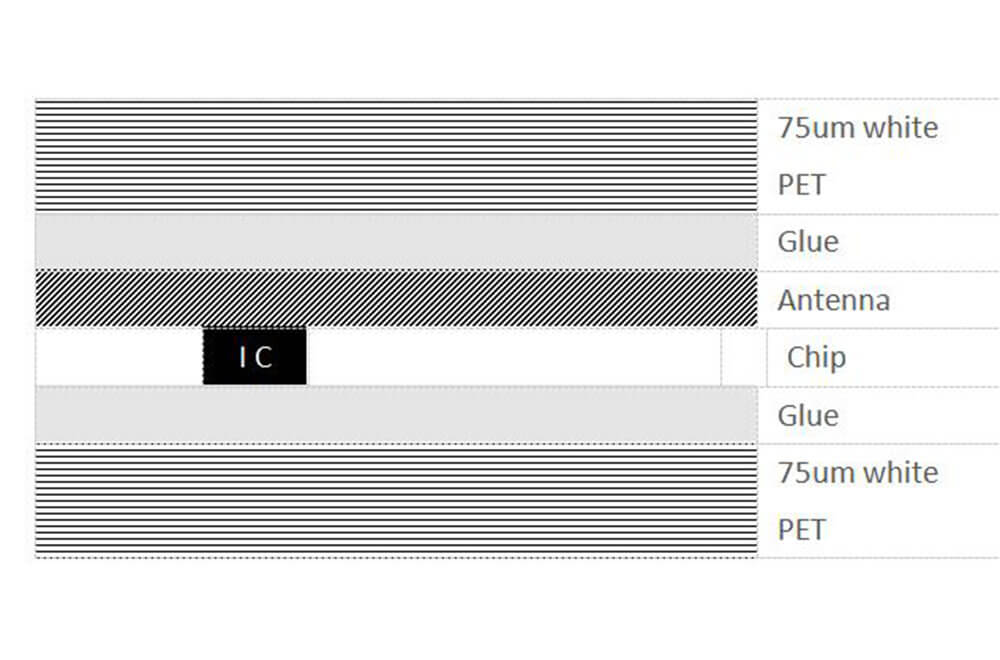

Structural Representation
|
A×B |
Label Size |
37mm×30mm |
±1.50mm |
||
|
C |
Label R Angle |
1 mm |
±0.20mm |
||
|
D×E |
Antenna Size |
34mm×27mm |
±0.20mm |
||
|
F/G |
Small bloc width |
8.5 mm |
±1.50mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
ImpinJ / Monza R6-P |
||||
|
Production Standard |
ISO 18000-6C |
||||
|
Chip Memory Section |
EPC |
128 bits |
|||
|
User Memory |
32 bits |
||||
|
Serial Number |
|||||
|
Extended TID Header |
16 bits |
||||
|
Company/Model Number |
32 bits |
||||
|
Kill Password |
32 bits |
||||
|
Access Password |
32 bits |
||||
|
Carrier Frequency |
860～960MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
piece，2000PCS/bag |
||||
