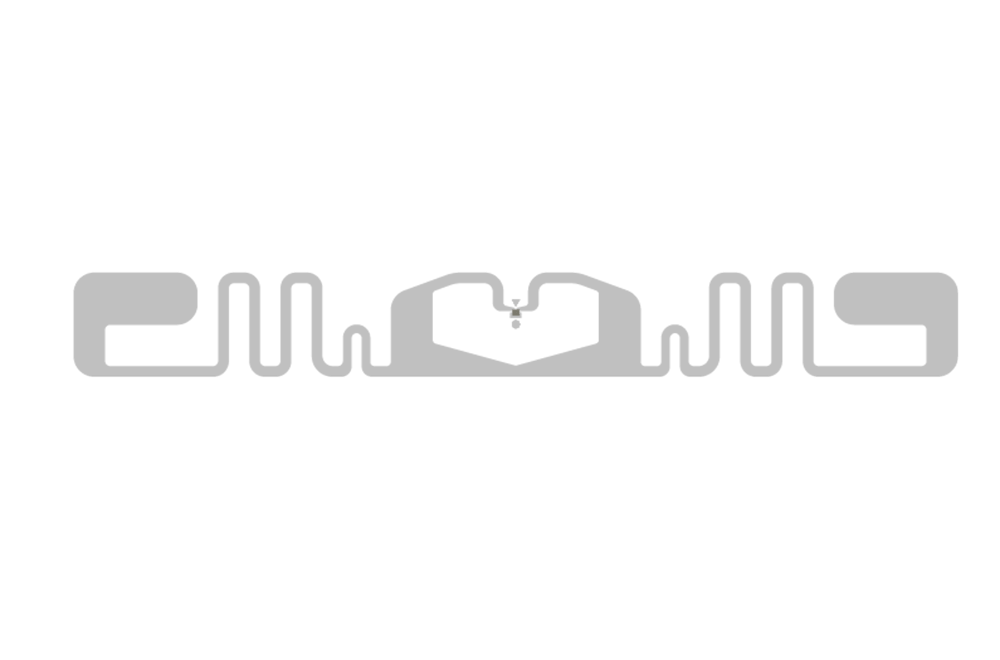

TG-096-1（Dry Inlay）

8619952766545

Sales@thinkgo.cc

TG-096-1（Dry Inlay）

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

PARAMETER

Product Name	Dry Inlay	Part Number	TG-096-1
Label Size	85mm×10mm	Chip Type	NXP UCODE G2iM+

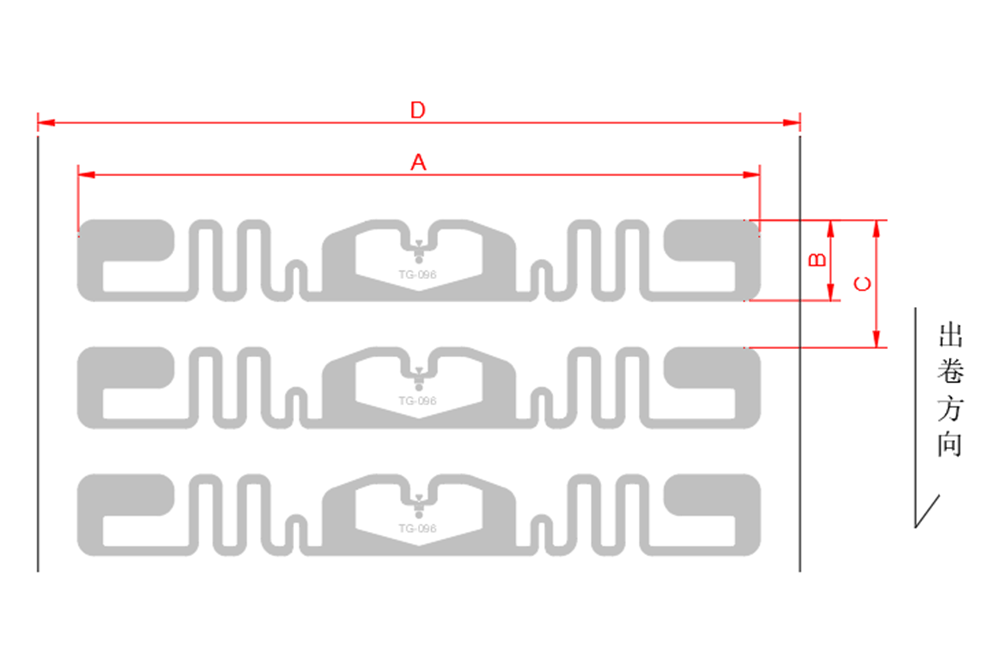

Dimensions

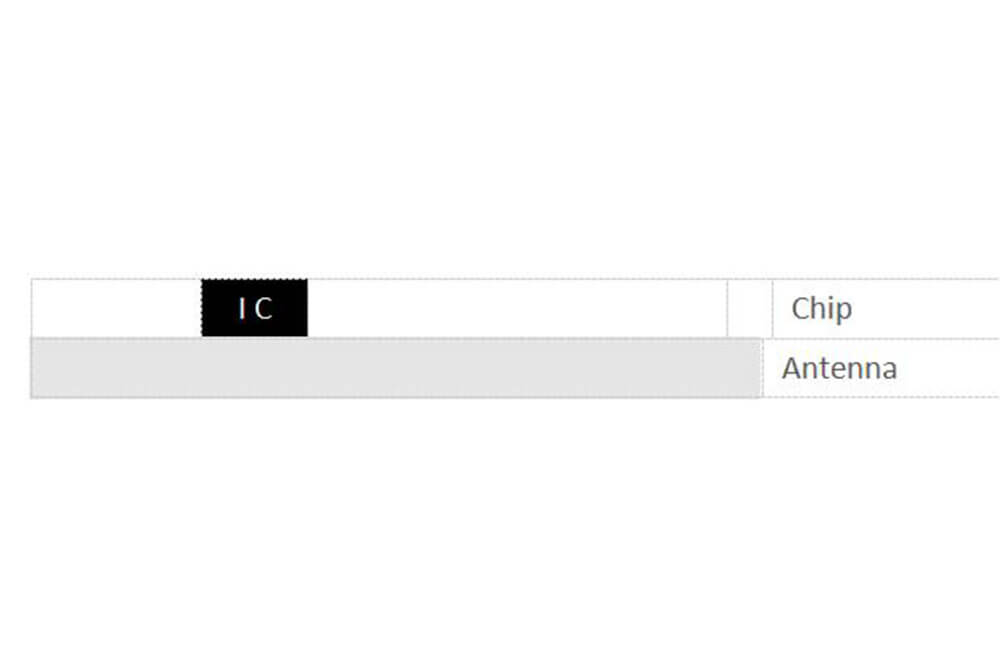

Structural Representation

A×B	Antenna Size		85 mm×10 mm		±0.20mm
C	Label Hop Distance		15.875 mm		±0.50mm
D	PET Width		95 mm		±0.50mm
Electrical Characteristics
Item		Description
Chip Type		NXP UCODE G2iM+
Production Standard		ISO 18000-6C
Chip Memory Section		EPC		448 bits
		User Memory		640 bits
		TID		96 bits
		User TID Memory		112 bits
		Kill Password		32 bits
		Access Password		32 bits
Carrier Frequency		840～960MHz
Work Mode		Passive
Chip lifetime		Write100,000 times，Reserve data for 50years
ESD		Maximum 2000V HBM(Human Body Model)
Operation Requirements		Operating Temperature/Humidity：－5～60℃/ 20%～80% RH
		Storage Temperature/Humidity：20～30℃/ 20%～60% RH
		Prohibit violent impact, prohibit extrusion or bending chip parts
Packing		10000±100pcs/roll，4 rolls/box
