Product Name |
Self-adhesive label |
Part Number |
TG-098-1 |
|
|
Label Size |
53mm×15mm |
Chip Type |
Impinj / Monza 4QT |
|
-

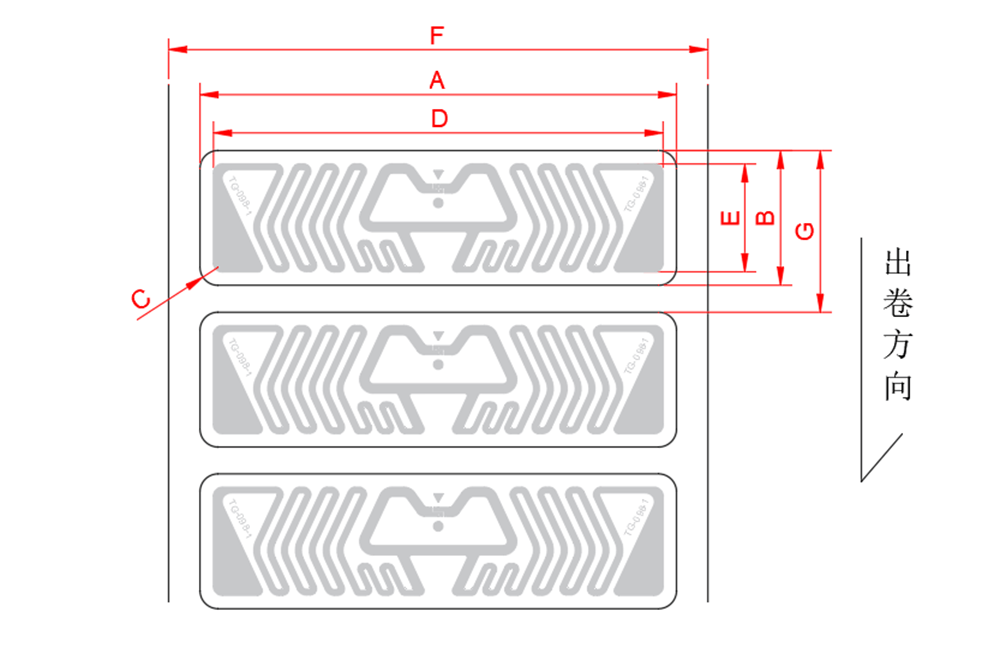

Dimensions
-

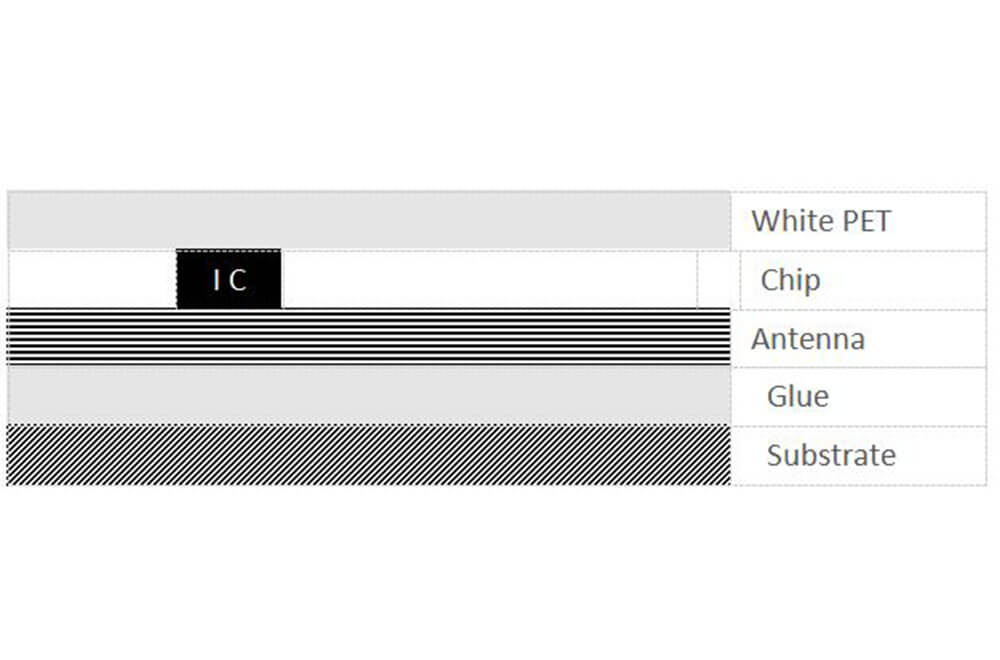

Structural Representation
|
A×B |
Label Size |
53mm×15mm |
±0.20mm |
||
|
C |
Label R Angle |
2 mm |
±0.20mm |
||
|
D×E |

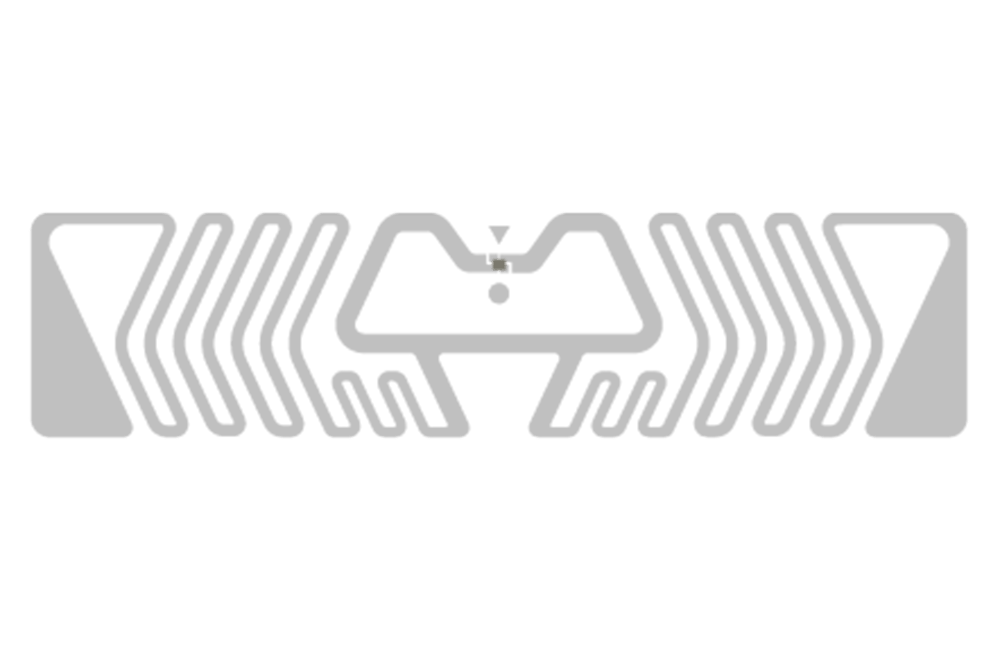

Antenna Size |
50mm×12mm |
±0.20mm |
||
|
F |
Width of Substrate |
60 mm |
±1.50mm |
||
|
G |
Label Hop Distance |
17.992 mm |
±0.50mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
Impinj / Monza 4QT |
||||
|
Production Standard |
EPC global ISO 18000-63 Gen2V2 |
||||
|
Chip Memory Section |
EPC |
128 bits |
|||
|
User Memory |
512 bits |
||||
|
Carrier Frequency |
860～960MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
5000pcs/roll，4 roll/box |
||||
