Product Name |
Self-adhesive label |
Part Number |
TG-201-1 |
|
Label Size |
45mm×30mm |
Chip Type |
NXP I-CODE SLIX |
-

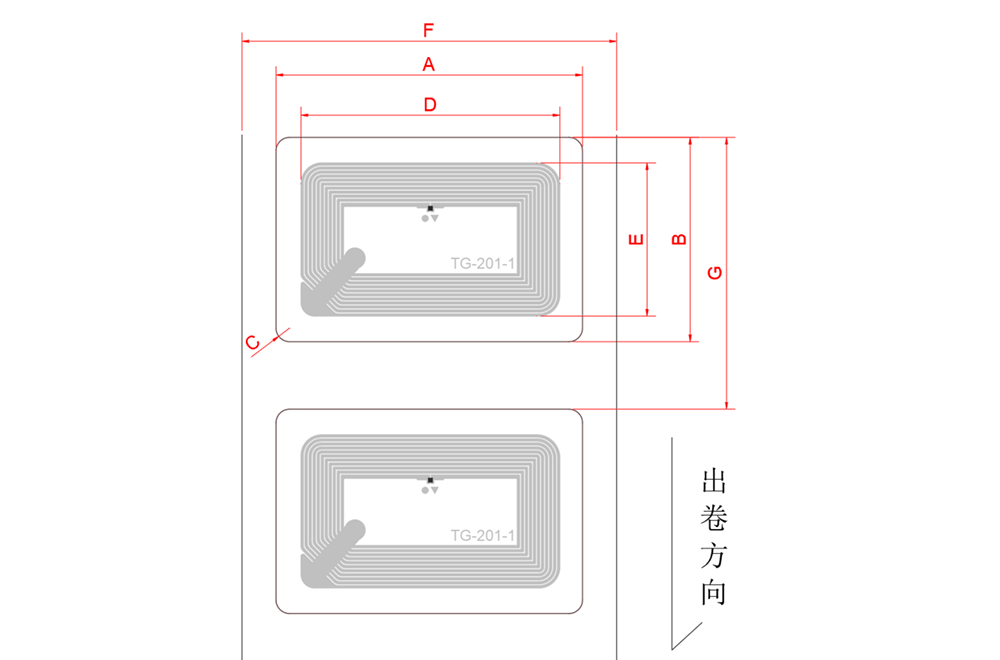

Dimensions
-

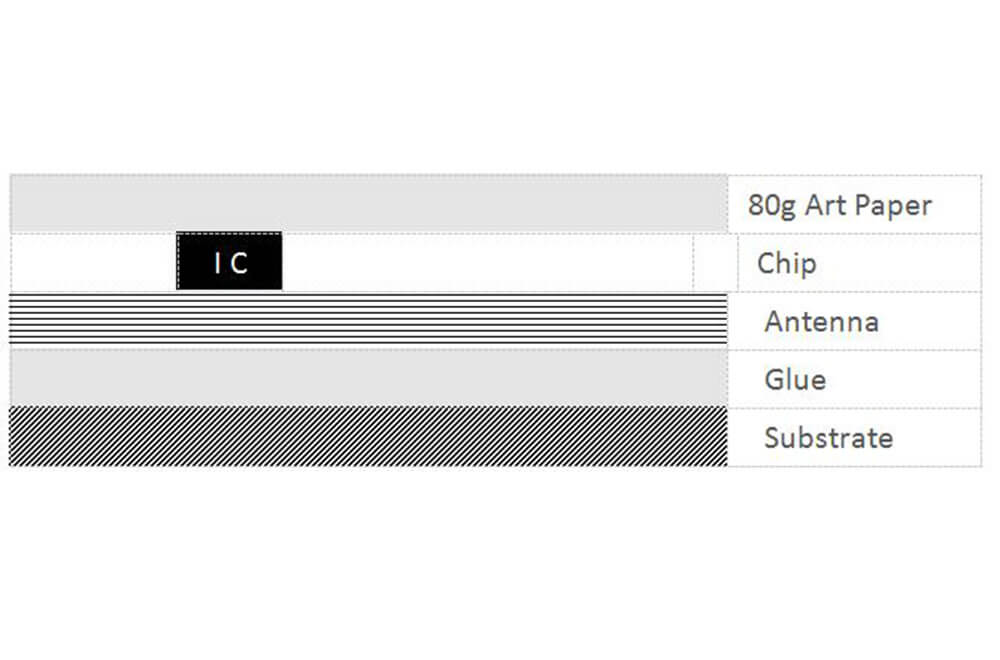

Structural Representation
|
A×B |
Label Size |
45mm×30mm |
±0.50mm |
||
|
C |
Label R Angle |
2 mm |
±0.20mm |
||
|
D×E |
Antenna Size |
38mm×22.5mm |
±0.20mm |
||
|
F |
Width of Substrate |
55 mm |
±1.00mm |
||
|
G |
Label Hop Distance |
39.914 mm |
±1.00mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
NXP I-CODE SLIX |
||||
|
Production Standard |
ISO/IEC 15693 |
||||
|
Chip Memory Section |
EEPROM |
1024 bits |
|||
|
Carrier Frequency |
13.56MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
2000pcs/roll，8 roll/box |
||||
