Product Name |
Dry Inlay |
Part Number |
TG-810-1 |
|
Label Size |
50mm×30mm |
Chip Type |
NXP / Ucode 8 |
-

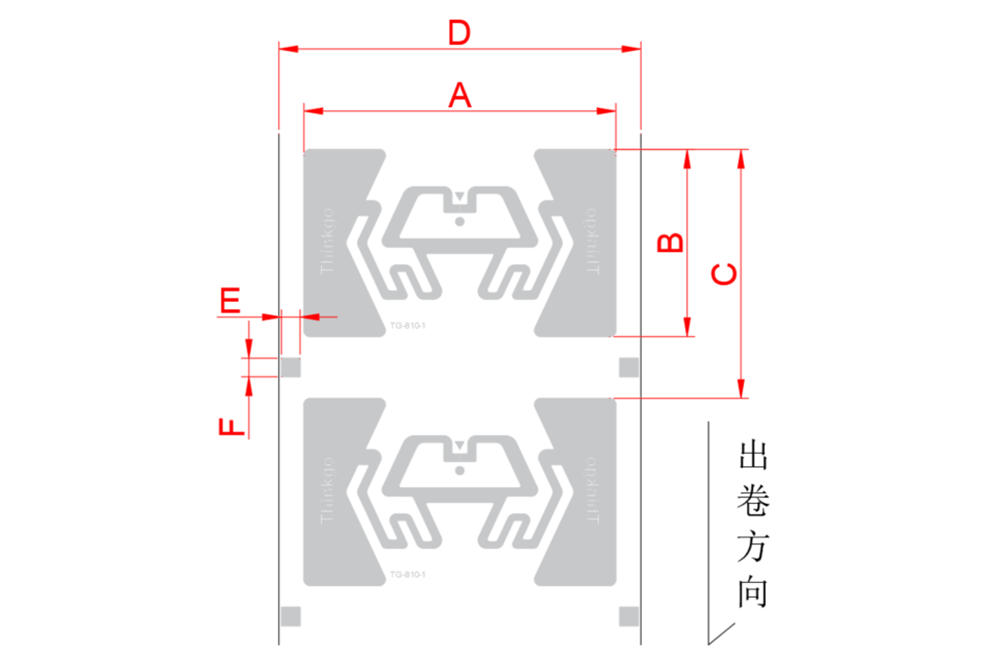

Dimensions
-

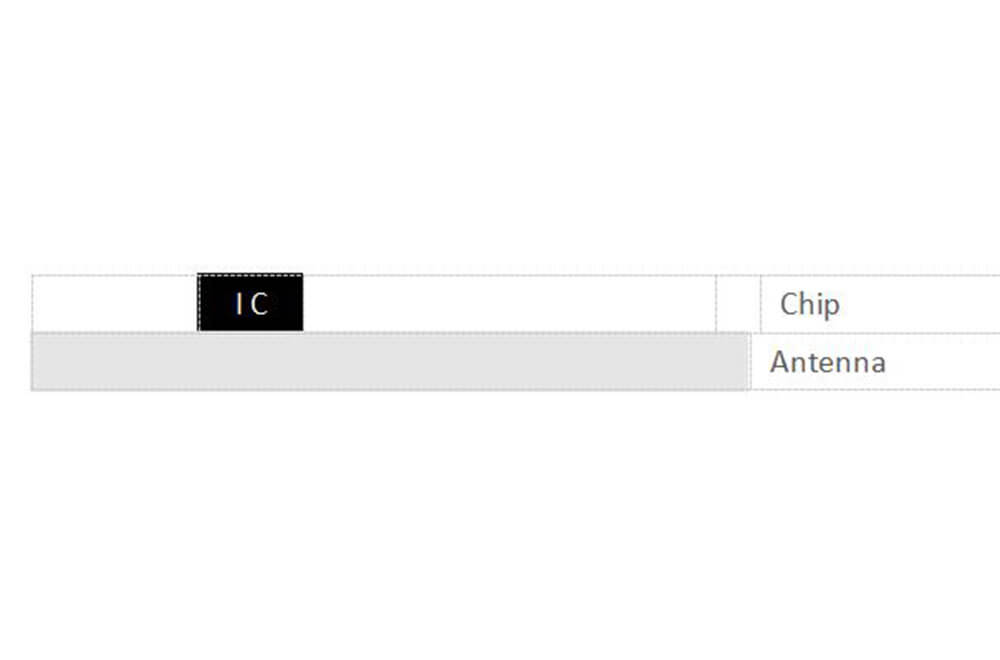

Structural Representation
|
A×B |

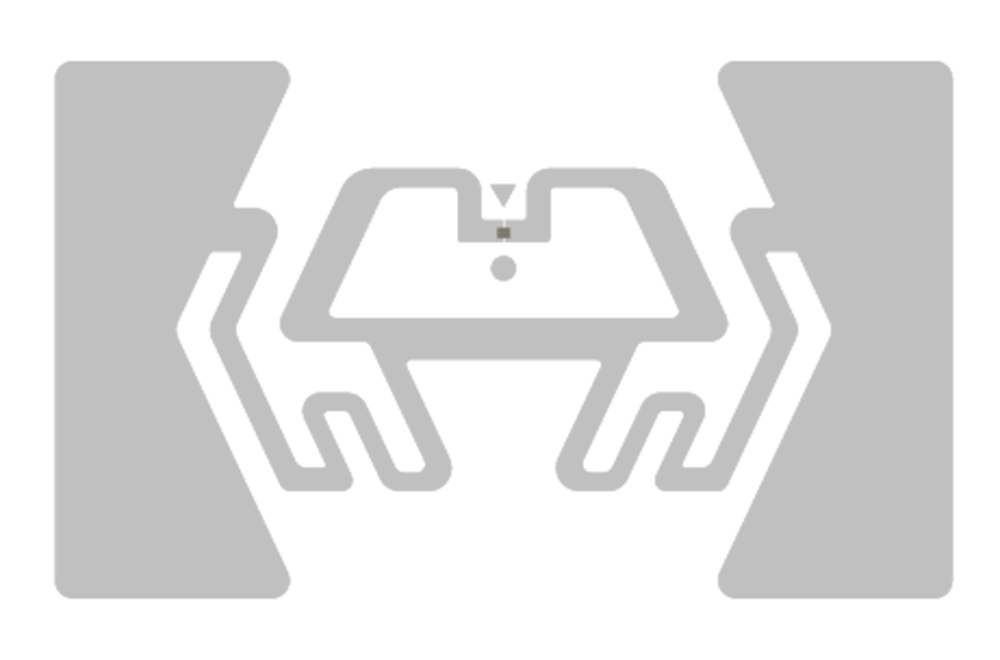

Antenna Size |
50 mm×30 mm |
±0.20mm |
||
|
C |
Label Hop Distance |
39.914 mm |
±0.50mm |
||
|
D |
PET Width |
58 mm |
±0.50mm |
||
|
E×F |
MARK Size |
3 mm×3 mm |
±0.20mm |
||
|
Electrical Characteristics |
|||||
|
Item |
Description |
||||
|
Chip Type |
NXP / Ucode 8 |
||||
|
Production Standard |
EPC Gen2 v2.0 |
||||
|
Chip Memory Section |
EPC |
128 Bits |
|||
|
User Memory |
N/A Bits |
||||
|
TID |
96 Bits |
||||
|
Password |
32 Bits Access |
||||
|
Carrier Frequency |
860～960MHz |
||||
|
Work Mode |
Passive |
||||
|
Chip lifetime |
Write100,000 times，Reserve data for 50years |
||||
|
ESD |
Maximum 2000V HBM(Human Body Model) |
||||
|
Operation Requirements |
Operating Temperature/Humidity：－5～60℃/ 20%～80% RH |
||||
|
Storage Temperature/Humidity：20～30℃/ 20%～60% RH |
|||||
|
Prohibit violent impact, prohibit extrusion or bending chip parts |
|||||
|
Packing |
10,000±100pcs/roll，2rolls/box |
||||
